Szczegóły Produktu:
Zapłata:
|
| tensile rate: | 0.3kg-31.3kg | color: | green |
|---|---|---|---|
| Tensile Strength: | 55N/mm2 | material: | PU |
| longth: | 300m/roll 200m/roll 100m/roll 30m/roll | hardness: | 85A-90A |
| High Light: | pu round belt,green round belt |
||

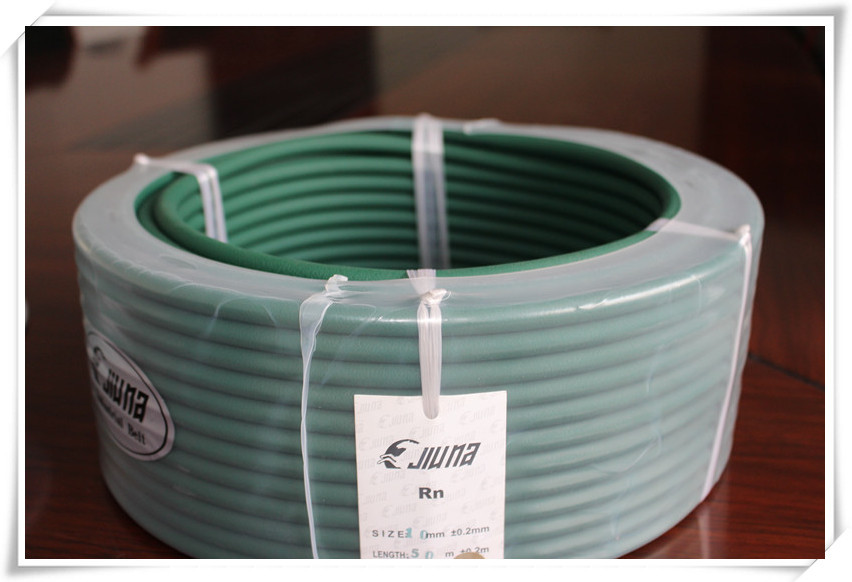

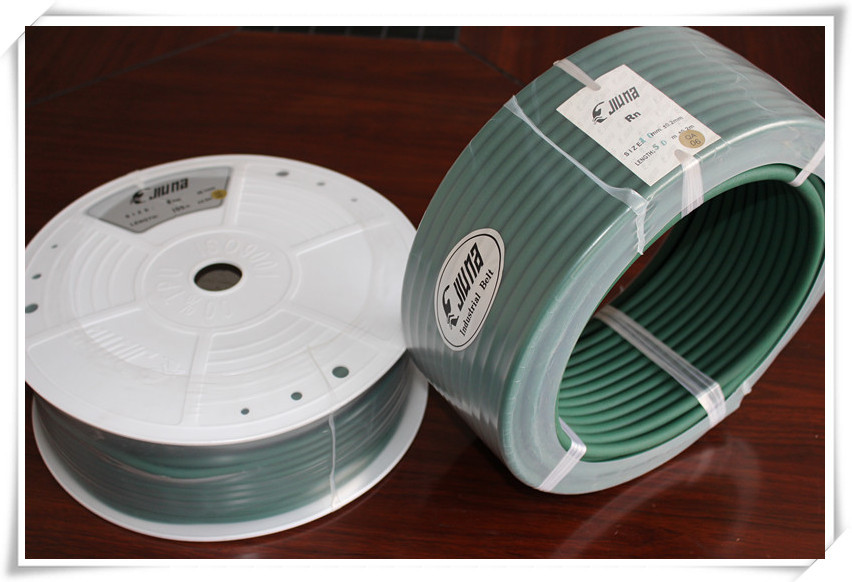

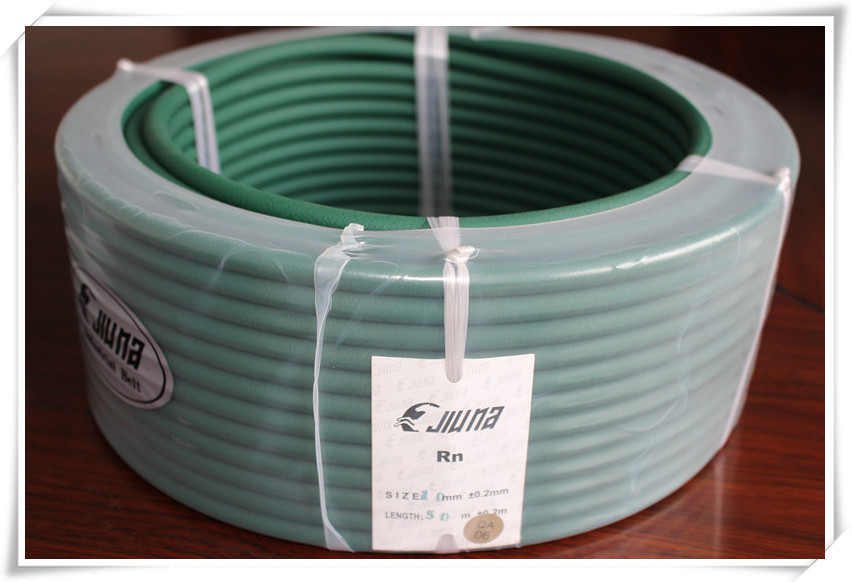

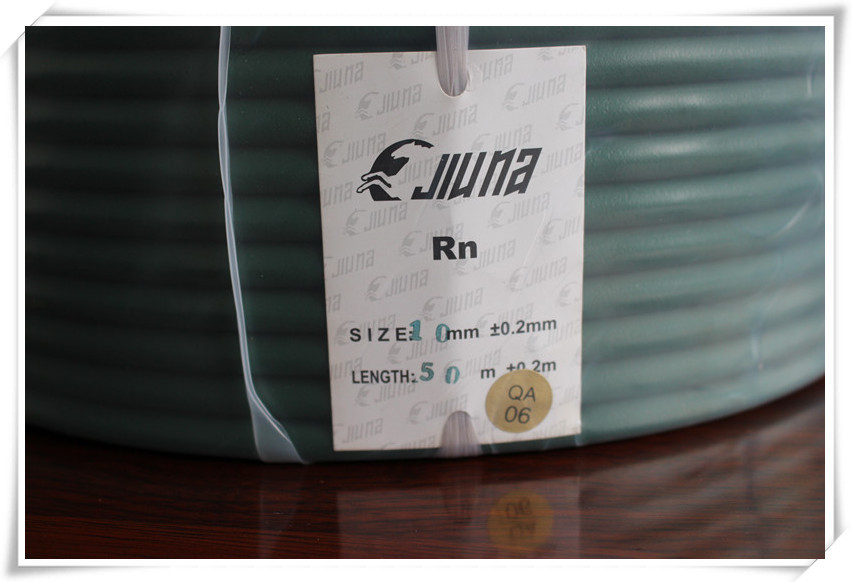

Industrial Power flat Fransmission belts abrasion resistance
Detailed Product Description:
PU Cord Belt Application :
1. Wall floor tile conveying industrial line
2. printing and packing machine
3. food & beverage processing
4. wood processing
5. paper processing
6. electronic
7. post service
8. tobacco transmission line
PU Cord Properties :
-Excellent abrasion resistance.
-Good resistance to fuel , oils and oxygen.
-Contains no plasticizer.
-Wide application temperature from -30℃~+80℃
transmission Round Belting Feature :
1. With excellent bend resistant
2. wear resistant
3. easy connected
4. it's not easy to be broken at low temperature
| Items No. φ | least radius of gyration | stretch rate | Maximum tensile rate | Hardness | length of rolled | ||
|
DIA (mm) |
In | mm | Stretching rate | Kg | Lbs |
Hardness (A) |
Roll (m) |
| 2 | 0.79 | 20 | 1.5-3% | 0.3 | 0.7 | 90 | 400 |
| 3 | 0.98 | 25 | 1.5-3% | 0.7 | 1.6 | 90 | 400 |
| 4 | 1.38 | 35 | 1.5-3% | 1.2 | 2.7 | 85 | 200 |
| 5 | 1.57 | 40 | 1.5-3% | 2.0 | 4.3 | 85 | 100 |
| 6 | 1.97 | 50 | 1.5-3% | 3.2 | 7.0 | 85 | 100 |
| 7 | 2.17 | 55 | 1.5-3% | 4.1 | 9.0 | 85 | 100 |
| 8 | 2.56 | 65 | 1.5-3% | 5.0 | 11.0 | 85 | 100 |
| 9 | 2.95 | 75 | 1.5-3% | 6.8 | 15.0 | 85 | 50 |
| 10 | 2.95 | 75 | 1.5-3% | 7.7 | 17.0 | 85 | 50 |
| 12 | 3.94 | 100 | 1.5-3% | 12.2 | 27.0 | 85 | 30 |
| 15 | 4.72 | 120 | 1.5-3% | 17.7 | 39.0 | 85 | 30 |
| 18 | 5.71 | 145 | 1.5-3% | 25.4 | 56.0 | 85 | 30 |
| 20 | 6.30 | 160 | 1.5-3% | 31.3 | 69.0 | 85 |
30 |
