Szczegóły Produktu:
Zapłata:
|
| hardness: | 85A | color: | green |
|---|---|---|---|
| stretching rate: | 1.5-3% | tensile rate: | 0.7 lbs-69lbs |
| material: | PU | length: | 400m/roll 300m/roll 200m/roll 100m/roll 30m/roll |
| High Light: | pu round belt,pu extruded belt |
||
Rough Polyurethane Round Belt , Urethane Cord Neoprene Belt Industrial
Detailed Product Description

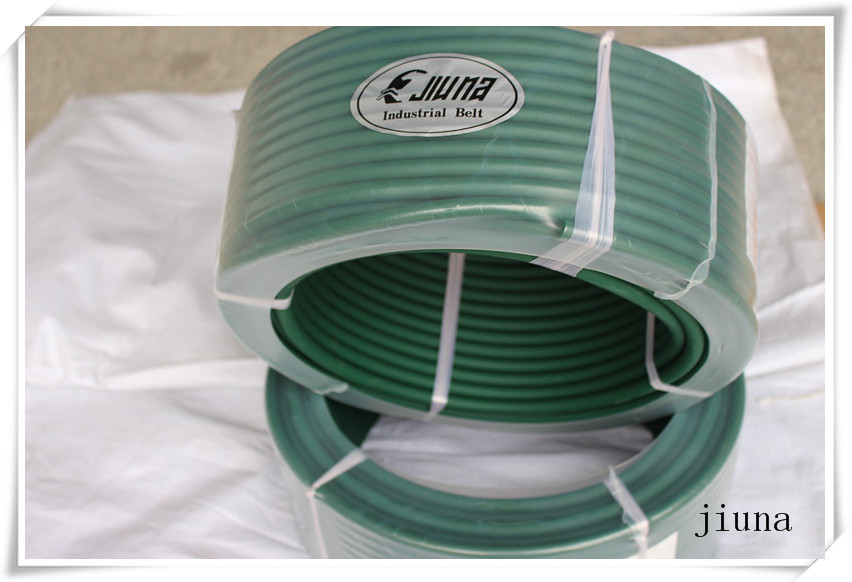

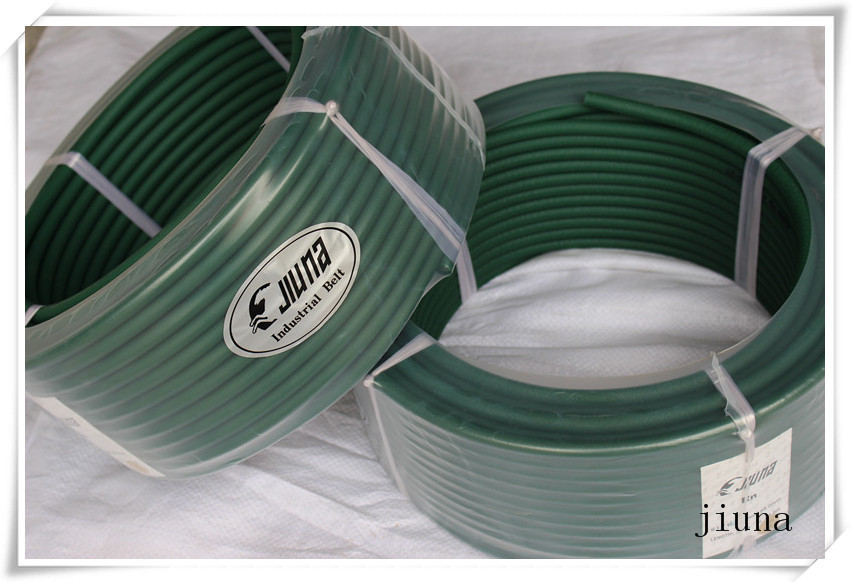

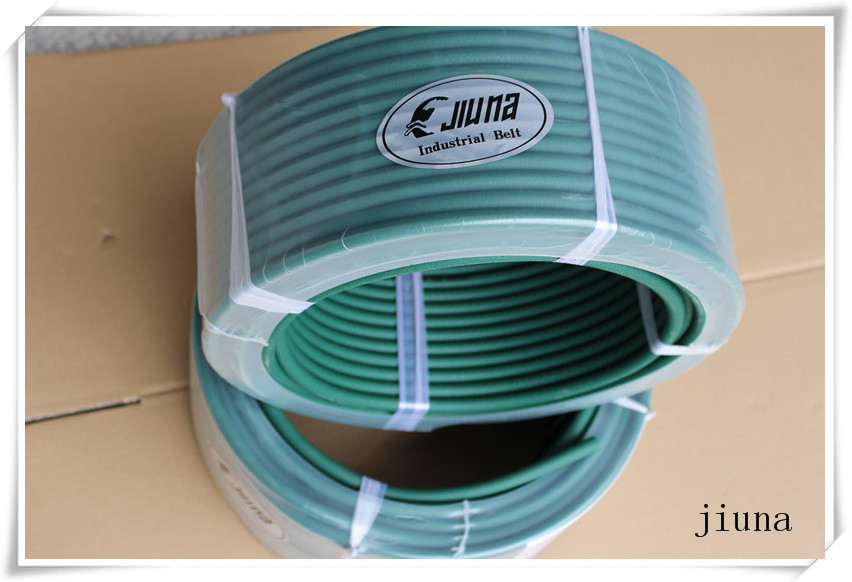

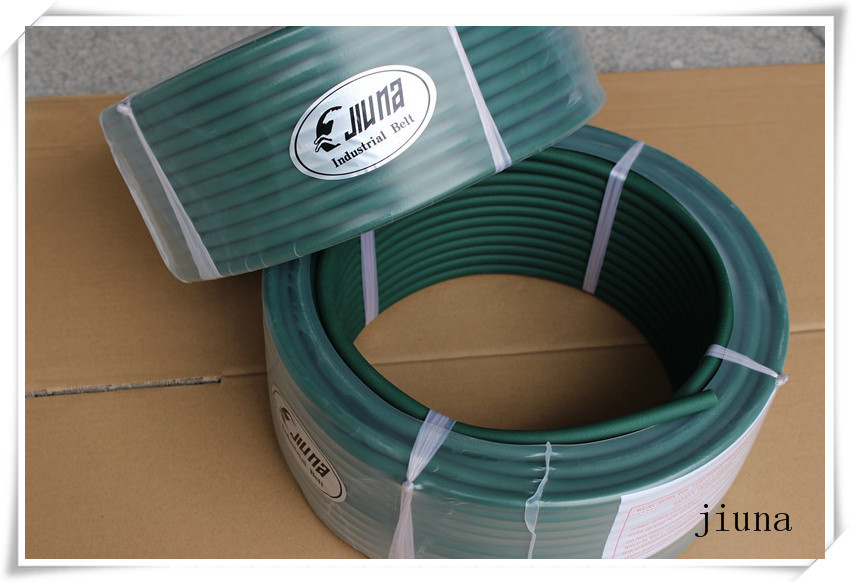

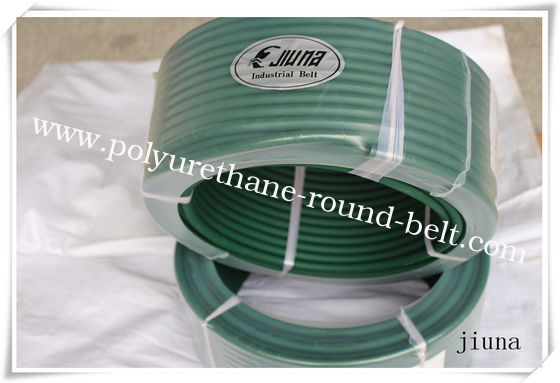

Industrial 12mm Polyurethane Round Belt Orange or Green for Packing Machine
Products introduction:
Urethane round belts are elastomeric belts for power transmission application.
Having most metric sizes (2mm to 20mm) and standard O-ring sizes.
Polyether and Polyurethane round belts have best resilience of any elastic material.
Polyester product has good wear resistance, its wear resistance is 3.5 times of common plastic and rubber.
our factory is located in wuxi city shitang bay mountain luoshe town industrial park,
near to 312 national road, Traffic is very convenient .
Company has the international leading level of polyurethane products production line,
the introduction of international advanced technology and testing, testing equipment.
we already have 2,000 square meters of factory buildings, 3 advanced production lines .
We have workers about 80 people, each machine operator has more than three years of
work experience is. Factory production capacity of 96.000 meters per Month. According to
your drawing production, or the production according to your samples you need.
After the production of the product, there is a special quality manager, product testing.
To ensure that the pass rate products.
Items NO.Φ | Least radius of gyration | Stretching rate | Maximum tensile rate | Hardness | Length of rolled | ||
DIA(mm) | In | mm | % | Kg | Lbs | Shore( A) | Length of rolled |
2mm | 0.79 | 20 | 1.5-3% | 0.3 | 0.7 | 95 | 400 |
2.5mm | 0.87 | 22 | 1.5-3% | 0.4 | 0.9 | 95 | 400 |
3mm | 0.98 | 25 | 1.5-3% | 0.7 | 1.6 | 90 | 400 |
3.5mm | 1.18 | 30 | 1.5-3% | 0.95 | 2.1 | 90 | 400 |
4mm | 1.38 | 35 | 1.5-3% | 1.2 | 2.7 | 90 | 200 |
5mm | 1.57 | 40 | 1.5-3% | 2.0 | 4.3 | 90 | 100 |
6mm | 1.97 | 50 | 1.5-3% | 3.2 | 7.0 | 90 | 100 |
7mm | 2.17 | 55 | 1.5-3% | 4.1 | 9.0 | 90 | 100 |
8mm | 2.56 | 65 | 1.5-3% | 5.0 | 11.0 | 90 | 100 |
9mm | 2.95 | 75 | 1.5-3% | 6.8 | 15.0 | 90 | 50 |
10mm | 2.95 | 75 | 1.5-3% | 7.7 | 17.0 | 90 | 50 |
12mm | 3.94 | 100 | 1.5-3% | 12.2 | 27.0 | 90 | 30 |
15mm | 4.72 | 120 | 1.5-3% | 17.7 | 39.0 | 90 | 30 |
18mm | 5.71 | 145 | 1.5-3% | 25.4 | 56.0 | 90 | 30 |
20mm | 6.30 | 160 | 1.5-3% | 31.3 | 69.0 | 90 | 30 |
Service commitment:
“Quality for keeping going ,Credit to win the world”
