| High Light: | Reinforced cord belt,polyurethane flat belt |
||
|---|---|---|---|

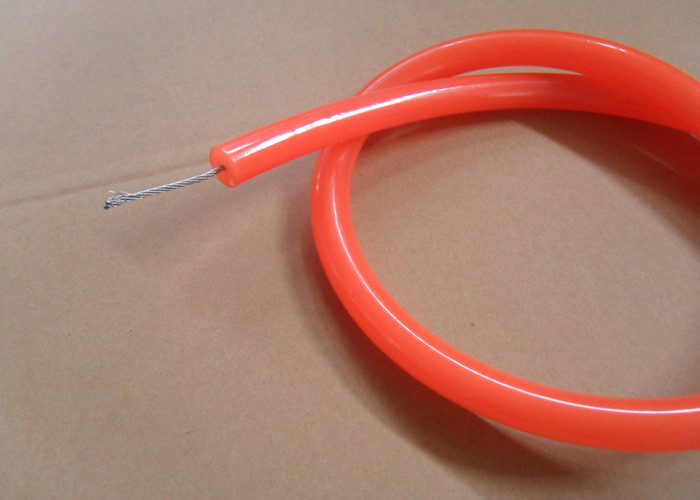

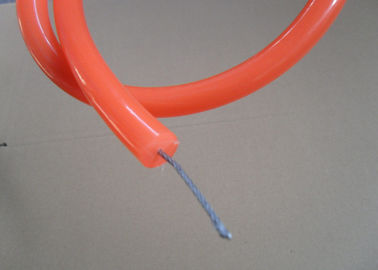

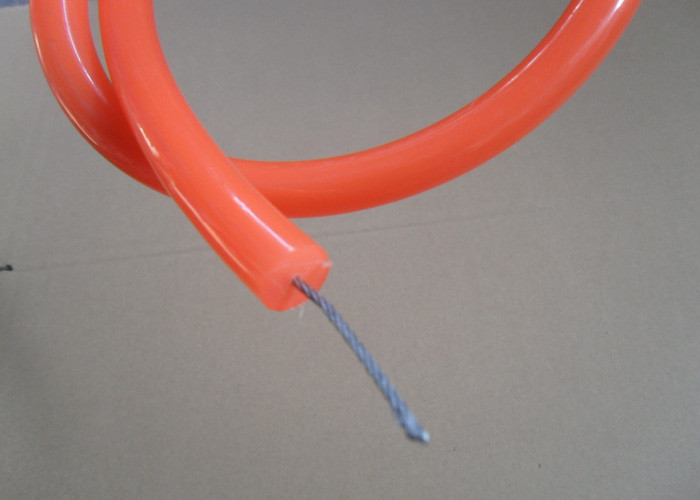

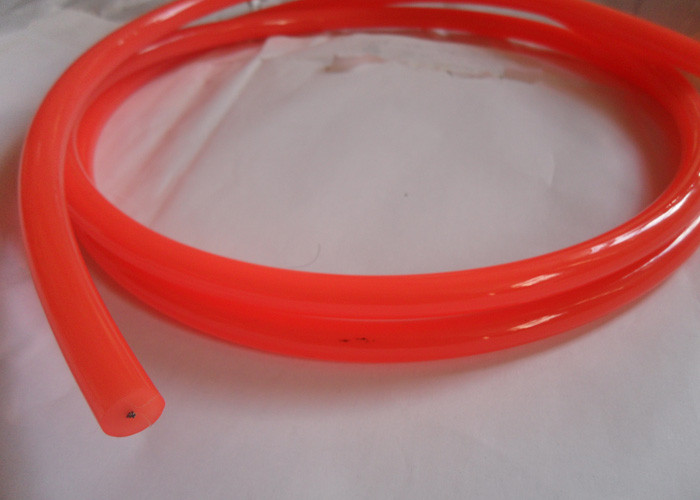

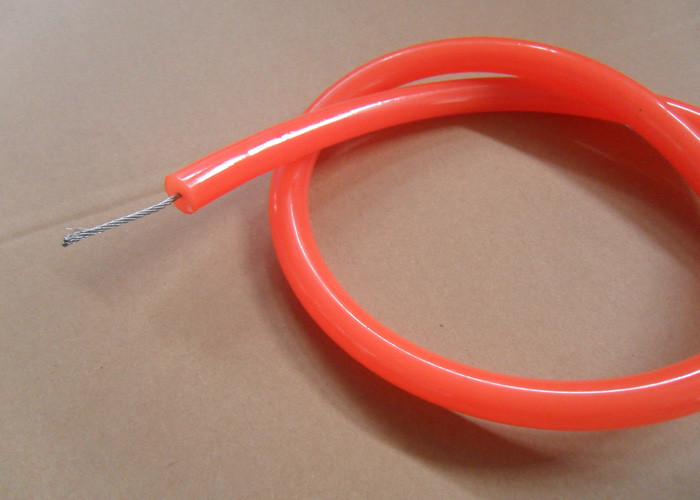

OEM Custom-made Diameter 12mm,12.5mm steel cord belts Reinforced Cord
Characteristics of reinforced cord
1. Tensile strength achieves up to 300 KG ~600KG
2. Reinforced cord : nylon , kevlar ,steel
3. Hardness 85 shore A ~ 95 shore A,
4.High resilience ,low level of belt stretching .
5.Excellent wear and abrasion resistance
6.Resistance to oil. Grease, dirt and most chemicals
7.can be welding through overlap welding
8.color on your request
|
Items No. φ |
Least radius of gyration |
Stretching rate |
Maximum tensile rate |
Hardness |
Length of rolled |
||
|---|---|---|---|---|---|---|---|
|
DIA (mm) |
In |
mm |
% |
Kg |
Lbs |
Shore (A) |
Roll (m) |
|
12mm |
3.94 |
100 |
1.5-3% |
12.2 |
27.0 |
90 |
30 |
|
12.5mm |
4.19 |
120 |
1.5-3% |
17.7 |
39.0 |
90 |
30 |
Application industries for steel cord belts (rope guided )
1.winder power industrial
2.General Constructions Engineer .
3.Tower climbing
4.Cable car cabin
5.Help anchor device (Climb assist rope)
6.Traction rope (Rope guided )
Products introduction :
Hardness of Reinforced steel cord Polyurethane Belt is 85A, 90A or 95A polyurethane reinforced with polyester cords or tape for additional strength and reduced stretch, making it the ideal choice for heavy-duty conveying applications where loads cause non-reinforced belts to elongate and slip. Maybe require larger pulley diameter and the addition of take-ups to the drive system. Excellent resistance can be to a wide range of industrial chemicals and solvents.
