PU round belt pulleys 85A Green Transmission belt For Machine

Chiny Wuxi Jiunai Polyurethane Products Co., Ltd Certyfikaty
Chiny Wuxi Jiunai Polyurethane Products Co., Ltd Certyfikaty
Customer satisfaction products , good service !

—— Mr. Alcioni possamai

we are very impressed with the quality of the belts you produced.

—— Mr.Mike

your products are very popular in my markets.

—— Mr. jone

Im Online Czat teraz

PU round belt pulleys 85A Green Transmission belt For Machine

PU round belt pulleys 85A Green Transmission belt For Machine
PU round belt pulleys 85A Green Transmission belt For Machine PU round belt pulleys 85A Green Transmission belt For Machine PU round belt pulleys 85A Green Transmission belt For Machine PU round belt pulleys 85A Green Transmission belt For Machine

Duży Obraz :  PU round belt pulleys 85A Green Transmission belt For Machine

Szczegóły Produktu:
Place of Origin: wuxi city of china
Nazwa handlowa: jiuna
Orzecznictwo: ROHS
Model Number: dia 3mm-18mm
Zapłata:
Minimum Order Quantity: 8 rolls
Packaging Details: Inner packing is plastic film .outer packing is carton
Delivery Time: Within 7 working days After receipt of your deposit
Payment Terms: T/T, 50% payment in advance ,50% balance before shipment ; Western Union ; L/C
Supply Ability: 96.000 meters per Month
Szczegółowy opis produktu
hardness: 85A-90A stretching rate: 1.5-3%
material: Polyurethane color: green
length: 30m/roll Type: PU round belt
High Light:

pu extruded belt

,

green round belt

PU round belt pulleys 85A Green Transmission belt For Machine

Items NO.Φ

Least radius of gyration

Stretching rate

Maximum tensile rate

Hardness

Length of rolled

DIA(mm)

 In

mm

  %

Kg

Lbs

Shore( A)

Length of rolled

2mm

0.79

20

1.5-3%

0.3

0.7

95

400

2.5mm

0.87

22

1.5-3%

0.4

0.9

95

400

3mm

0.98

25

1.5-3%

0.7

1.6

90

400

3.5mm

1.18

30

1.5-3%

0.95

2.1

90

400

4mm

1.38

35

1.5-3%

1.2

2.7

90

200

5mm

1.57

40

1.5-3%

2.0

4.3

90

100

6mm

1.97

50

1.5-3%

3.2

7.0

90

100

7mm

2.17

55

1.5-3%

4.1

9.0

90

100

8mm

2.56

65

1.5-3%

5.0

11.0

90

100

9mm

2.95

75

1.5-3%

6.8

15.0

90

50

10mm

2.95

75

1.5-3%

7.7

17.0

90

50

12mm

3.94

100

1.5-3%

12.2

27.0

90

30

15mm

4.72

120

1.5-3%

17.7

39.0

90

30

18mm

5.71

145

1.5-3%

25.4

56.0

90

30

20mm

6.30

160

1.5-3%

31.3

69.0

90

30


Features:
Outstanding abrasion resistance
High tensile and tear strength
Resistance to oils, fuels,and oxygen
Good weatherability and high impact resistance
Low compression set

Application:
Newspaper conveying,
Packing machines,
Ceramic and stoneware processing plants,
Floor and roof tiles conveying,
Wood Working machineries,
Textile machines,
Paper industry machines,
Food grading machines, other food processing machines.


supply the connecting tools & Accessories for polyurethane belts , include clamp ,the Electric Iron and Knife , Connecting methods is hotpress welding , overlap welding .
The very elastic and flexible material PU 85 A ~90 A is particularly suitable for lead in conveyors and vertical shafts .

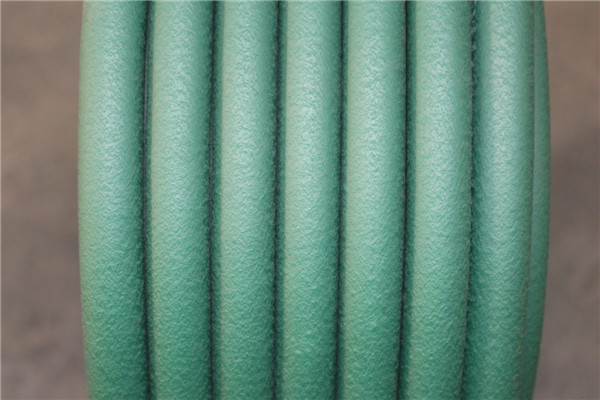

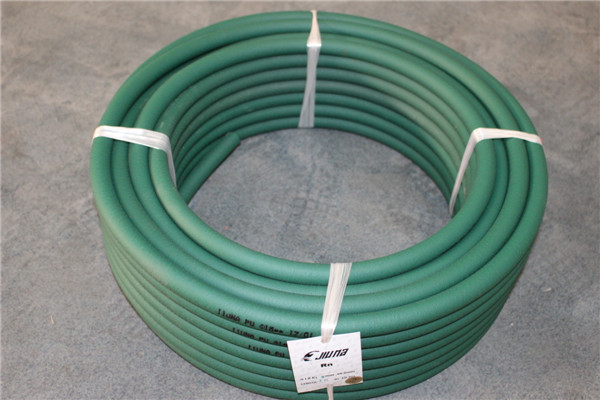

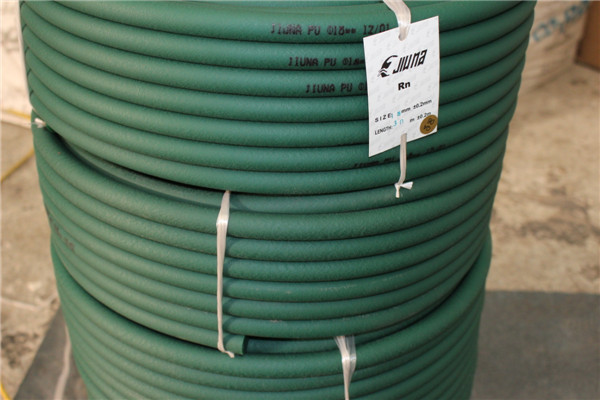

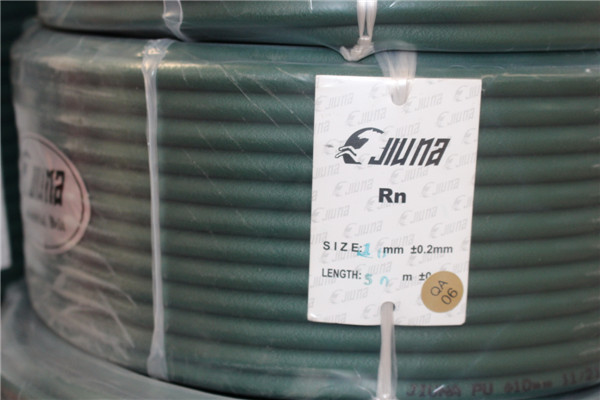

PU round belt pulleys 85A Green Transmission belt For Machine 0PU round belt pulleys 85A Green Transmission belt For Machine 1
