Szczegóły Produktu:
Zapłata:
|
| color: | red | material: | 100% TPU |
|---|---|---|---|
| longth: | 300m/roll 200m/roll 100m/roll 50m/roll 30m/roll | hardness: | 85A-90A |
| type: | PU smooth round belt | ||
| High Light: | pu round belt,pu extruded belt |
||

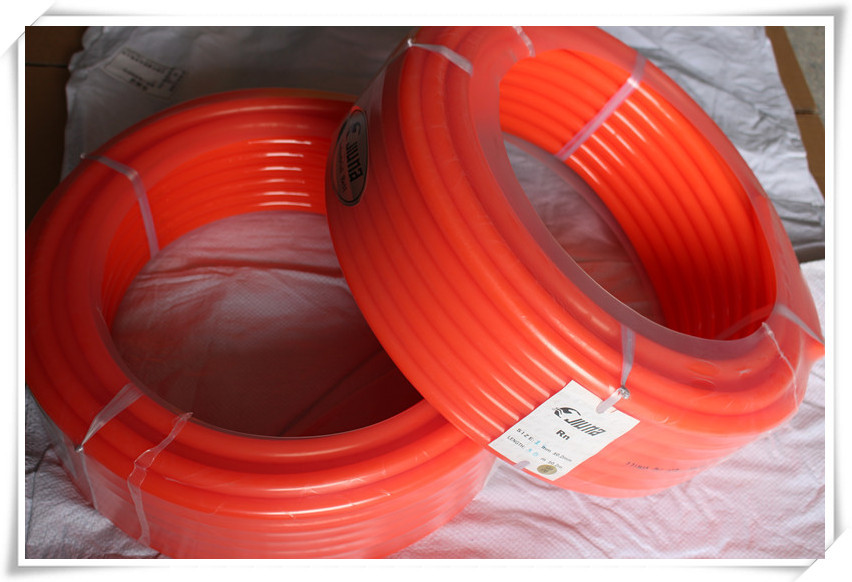

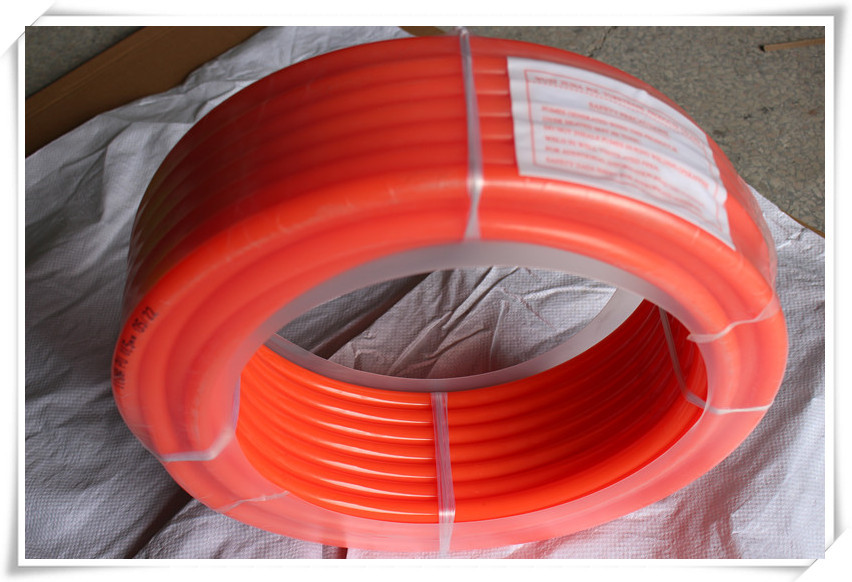

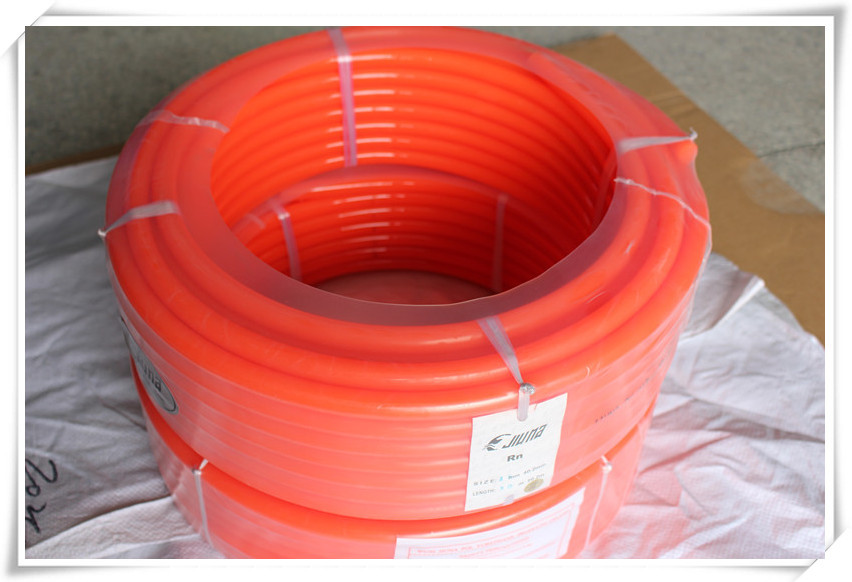

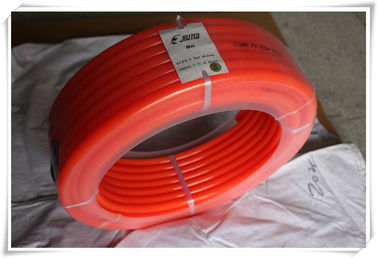

High hardness Polyurethane Round Belt 85A - 90A For Textile industry
(1)Thermoplastic polyurethane material, easy to be melted jointed
(2)Reinforced by Polyester Cord or Steel Cord
(3)Temperature range -35°C - 80°C
(4)Shore A hardness range 80A - 98A
(5)With excellent resistance to flex, abrasion resistance, easy jointed and other characteristics. Widely used in textile, packaging, printing, machinery, electronic, glass, chemicals, ceramics and other industries, especially in the ceramic industry, widely used in the facilities line the glaze, polishing lines, and transmission line.
(6)Round Belt:
Round Belt Dia. is from 2mm to 30mm
Smooth Belt with good surface finish; Rough belt with even surface roughness. They are used widely.
Transmission purposes of textile machines, packaging machines, printing presses, food machinery, industrial and paper equipments. Cut round belts can be joined as the endless belts as required according to the drive wheel distance and pulley size.
Items NO.Φ | Least radius of gyration | Stretching rate | Maximum tensile rate | Hardness | Length of rolled | ||
DIA(mm) | In | mm | % | Kg | Lbs | Shore( A) | Length of rolled |
2mm | 0.79 | 20 | 1.5-3% | 0.3 | 0.7 | 95 | 400 |
2.5mm | 0.87 | 22 | 1.5-3% | 0.4 | 0.9 | 95 | 400 |
3mm | 0.98 | 25 | 1.5-3% | 0.7 | 1.6 | 90 | 400 |
3.5mm | 1.18 | 30 | 1.5-3% | 0.95 | 2.1 | 90 | 400 |
4mm | 1.38 | 35 | 1.5-3% | 1.2 | 2.7 | 90 | 200 |
5mm | 1.57 | 40 | 1.5-3% | 2.0 | 4.3 | 90 | 100 |
6mm | 1.97 | 50 | 1.5-3% | 3.2 | 7.0 | 90 | 100 |
7mm | 2.17 | 55 | 1.5-3% | 4.1 | 9.0 | 90 | 100 |
8mm | 2.56 | 65 | 1.5-3% | 5.0 | 11.0 | 90 | 100 |
9mm | 2.95 | 75 | 1.5-3% | 6.8 | 15.0 | 90 | 50 |
10mm | 2.95 | 75 | 1.5-3% | 7.7 | 17.0 | 90 | 50 |
12mm | 3.94 | 100 | 1.5-3% | 12.2 | 27.0 | 90 | 30 |
15mm | 4.72 | 120 | 1.5-3% | 17.7 | 39.0 | 90 | 30 |
18mm | 5.71 | 145 | 1.5-3% | 25.4 | 56.0 | 90 | 30 |
20mm | 6.30 | 160 | 1.5-3% | 31.3 | 69.0 | 90 | 30 |
