Szczegóły Produktu:
Zapłata:
|
| twardość: | 85A | kolor: | Zielony |
|---|---|---|---|
| Zakres temperatury: | -35°C- 80°C | Rodzaj: | Okrągły pasek z PU |
| materiał: | PU | Powierzchnia: | surowy |
| Odporny na ścieranie: | 30mm | ||
| High Light: | okrągły pasek pu,zielony okrągły pasek,okrągłe paski poliuretanowe o wysokiej wytrzymałości na rozciąganie |
||

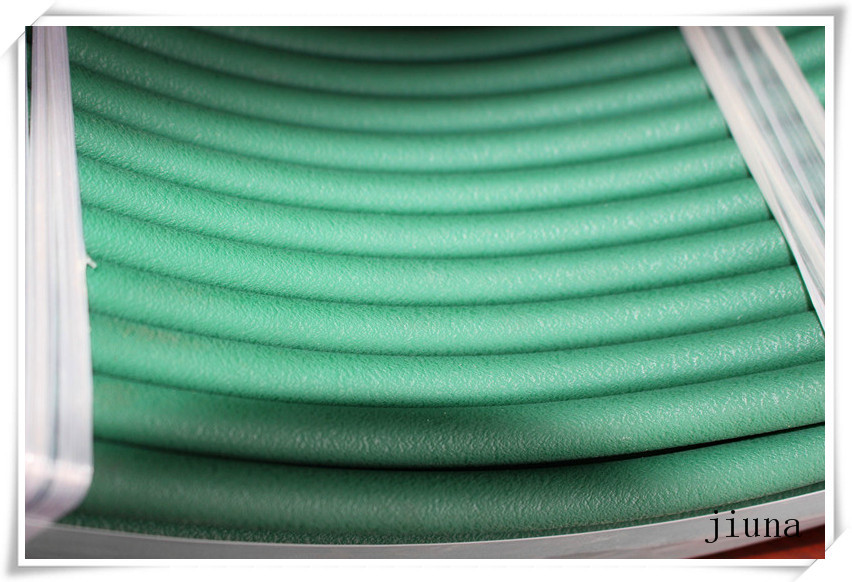

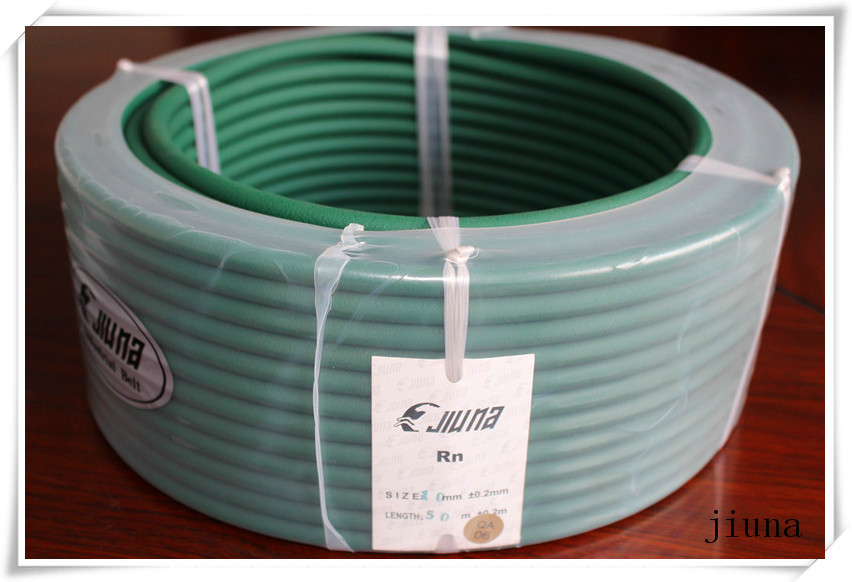

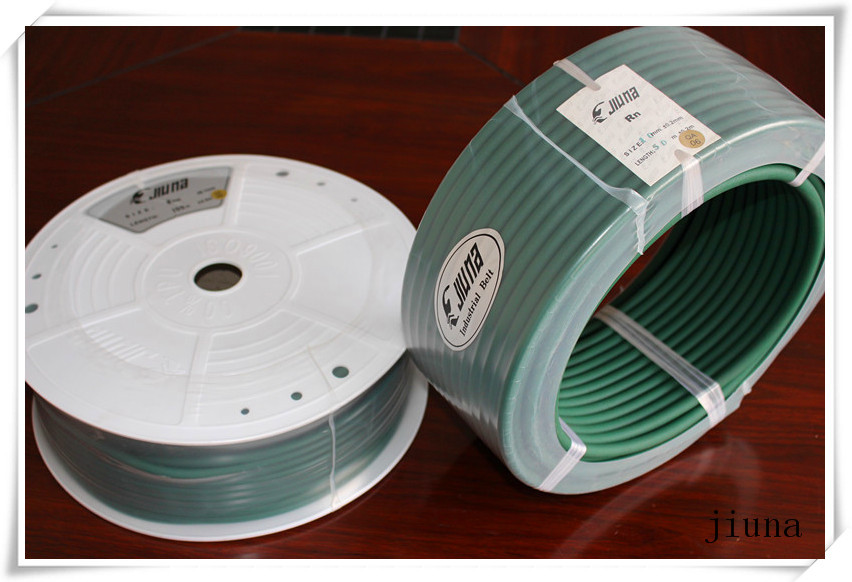

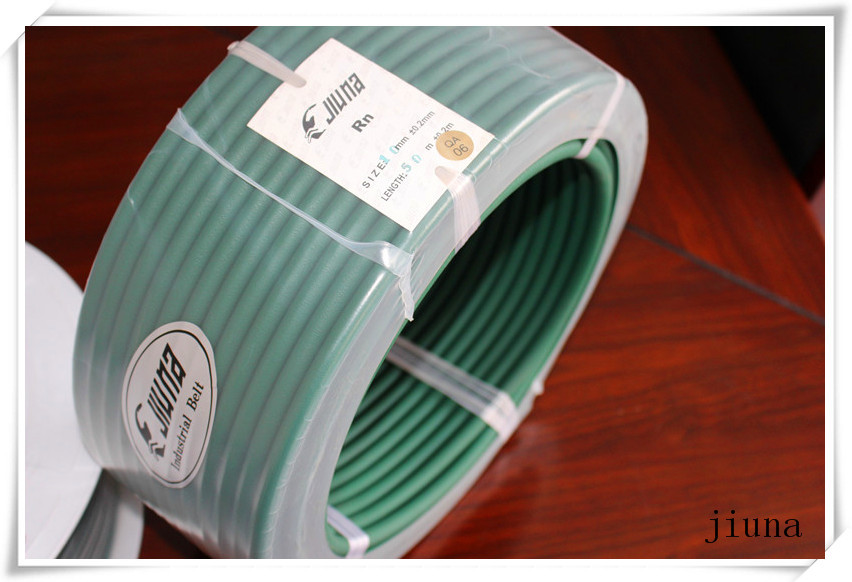

Green Tear Strength Rough Polyurethane Round Belt High Tensile
Pu Round Belt
Temperature range -35°C - 80°C
Shore A hardness range 80A - 98A
With excellent resistance to flex, abrasion resistance, easy jointed and other characteristics. Widely used in textile, packaging, printing, machinery, electronic, glass, chemicals, ceramics and other industries, especially in the ceramic industry, widely used in the facilities line the glaze, polishing lines, and transmission line.
Round Belt:
Round Belt Dia. is from 2mm to 30mm
Applications:
--------------------------------------------------------------------------------
PU Rubber Round Belt is widely used in transmission and distribution of the following industry.
--- Newspaper conveying,
--- Packing machines,
--- Ceramic and stoneware processing plants, such as glazing Lines, transmission lines, polishing line etc.
--- Floor and roof tiles conveying,
--- Wood Working machineries,
--- Textile machines,
--- Paper industry machines,
--- Food grading machines, other food processing machines.
Features:
--------------------------------------------------------------------------------
PU Rubber Round Belt has many advantages as follow: Is widely used in transmission and distribution products for the textile, clothing, food, packaging, printing, machinery, electronic, glass, chemicals, automobiles, beverages, furniture, toys, paper and other industries; Especially in the following industry.
1) Outstanding abrasion resistance
2) High tensile and tear strength
3) Resistance to oils, fuels, and oxygen
4) Fabulous weatherability and high impact resistance
5) Low compression set
--------------------------------------------------------------------------------
Products introduction:
Urethane round belts are elastomeric belts for power transmission application.
Having most metric sizes (2mm to 20mm) and standard O-ring sizes.
Polyether and Polyurethane round belts have best resilience of any elastic material.
Polyester product has good wear resistance, its wear resistance is 3.5 times of common plastic
and rubber.
|
Items NO.Φ |
Least radius of gyration |
Stretching rate |
Maximum tensile rate |
Hardness |
Length of rolled |
||
|
DIA(mm) |
In |
mm |
% |
Kg |
Lbs |
Shore( A) |
Length of rolled |
|
2mm |
0.79 |
20 |
1.5-3% |
0.3 |
0.7 |
95 |
400 |
|
2.5mm |
0.87 |
22 |
1.5-3% |
0.4 |
0.9 |
95 |
400 |
|
3mm |
0.98 |
25 |
1.5-3% |
0.7 |
1.6 |
90 |
400 |
|
3.5mm |
1.18 |
30 |
1.5-3% |
0.95 |
2.1 |
90 |
400 |
|
4mm |
1.38 |
35 |
1.5-3% |
1.2 |
2.7 |
90 |
200 |
|
5mm |
1.57 |
40 |
1.5-3% |
2.0 |
4.3 |
90 |
100 |
|
6mm |
1.97 |
50 |
1.5-3% |
3.2 |
7.0 |
90 |
100 |
|
7mm |
2.17 |
55 |
1.5-3% |
4.1 |
9.0 |
90 |
100 |
|
8mm |
2.56 |
65 |
1.5-3% |
5.0 |
11.0 |
90 |
100 |
|
9mm |
2.95 |
75 |
1.5-3% |
6.8 |
15.0 |
90 |
50 |
|
10mm |
2.95 |
75 |
1.5-3% |
7.7 |
17.0 |
90 |
50 |
|
12mm |
3.94 |
100 |
1.5-3% |
12.2 |
27.0 |
90 |
30 |
|
15mm |
4.72 |
120 |
1.5-3% |
17.7 |
39.0 |
90 |
30 |
|
18mm |
5.71 |
145 |
1.5-3% |
25.4 |
56.0 |
90 |
30 |
|
20mm |
6.30 |
160 |
1.5-3% |
31.3 |
69.0 |
90 |
30 |
